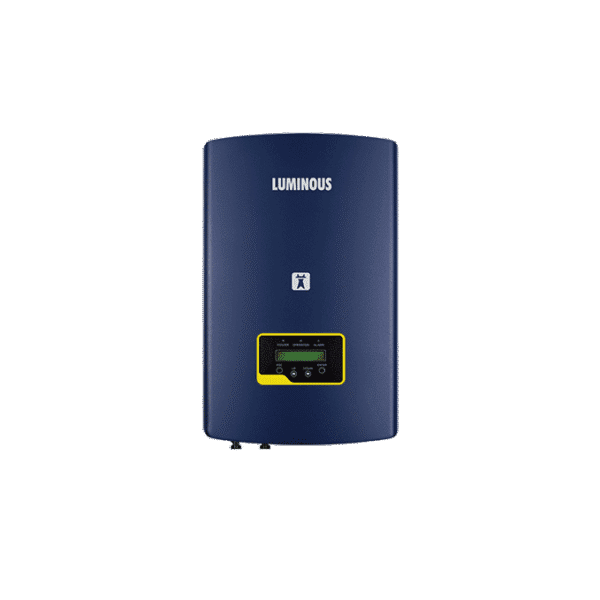

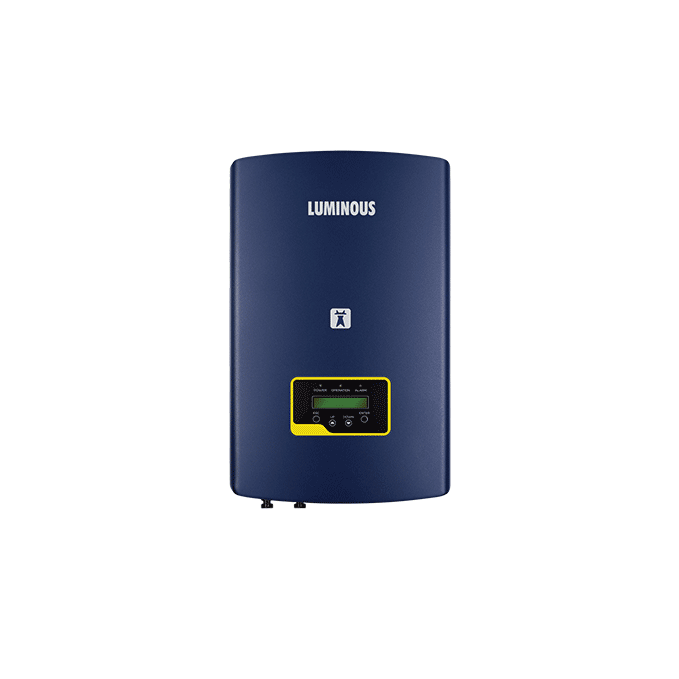

LUMINOUS Grid Tie Inverter NXI 6kW (Three Phase)
The LUMINOUS NXI 6kW Grid Tie Inverter is a high-performance solar inverter designed for residential and commercial solar power systems. Built with advanced MPPT (Maximum Power Point Tracking) technology, it efficiently converts solar energy into usable electricity while ensuring optimal performance and safety. The inverter operates on a three-phase connection, making it ideal for larger setups with higher power demands.
Key Features:
Maximum Power Point Tracking (MPPT):
Maximizes energy harvest from solar panels by operating at the optimal voltage, offering 30% more efficiency than traditional PWM inverters.
Anti-Islanding Protection:
Automatically disconnects the inverter from the grid during power failures, ensuring safety for linemen and preventing electrical backflow.
Advanced Safety Protections:
Equipped with comprehensive inbuilt protections including:
-
DC Reverse Polarity Protection
-
Over Voltage and Short Circuit Protection
-
Temperature and Insulation Monitoring
-
Residual Current Monitoring
-
Islanding Protection
Low Harmonic Distortion:
Delivers clean, high-quality power with <3% Total Harmonic Distortion (THDi).
Smart Connectivity (Optional):
Supports RS485, GSM, and Wi-Fi dongles for remote monitoring and diagnostics.
Cooling & Efficiency:
-
Transformerless design
-
Natural convection cooling
-
High MPPT efficiency
-
Overall max. efficiency > 97%
Night SVG Function (Applicable for 50kW+ models):
Supports grid stability by generating 60% of rated reactive power even at night (available only in higher models).
Technical Specifications (Model NXI 306):
-
Rated Output Power: 6 kW
-
Max. DC Input Power: 9.0 kW
-
Max. DC Input Voltage: [As per configuration]
-
Rated Output Current: 10 A
-
Max. Output Power: 6.6 kW
-
Power Factor: ≈1 (at rated output power)
-
Grid Frequency Range: 50 Hz
-
Noise Level: <30 dBA
-
Ingress Protection: IP66 (dustproof and waterproof)
-
Operating Temperature: -25°C to 60°C
-
Cooling Method: Natural Convection
-
Lifespan: >20 years
-
Dimensions (mm): 310W x 563H x 129D
-
Weight: 17.8 kg
-
Certifications: BIS Certified (IS/IEC standards)
Warranty: Product comes with a 10 years warranty.
The LUMINOUS NXI 6kW Grid Tie Inverter is your reliable solution for uninterrupted, efficient, and safe solar energy usage. Ideal for powering homes, offices, or small commercial spaces with smart solar integration.
